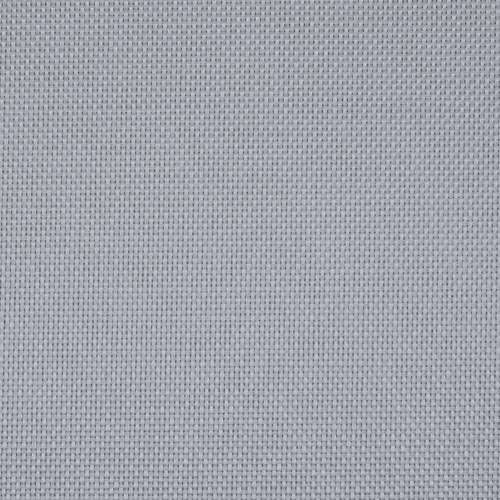

Blanco

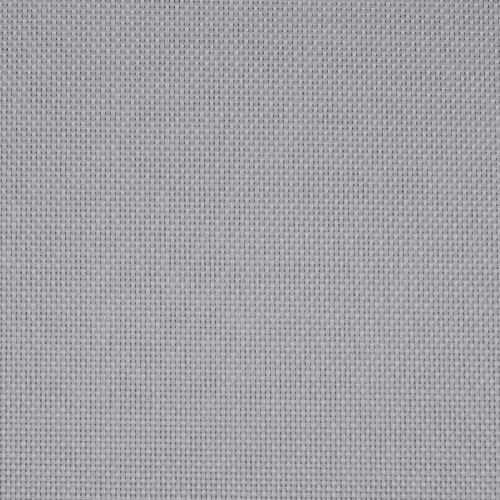

Hush

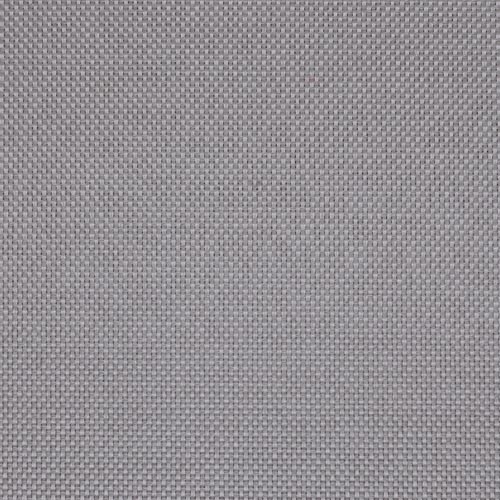

Stoneleigh

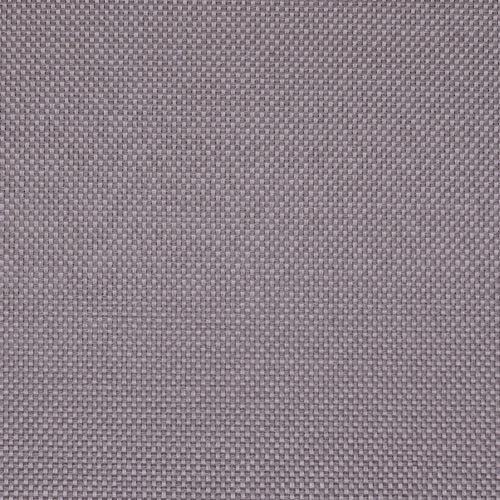

Antiqua

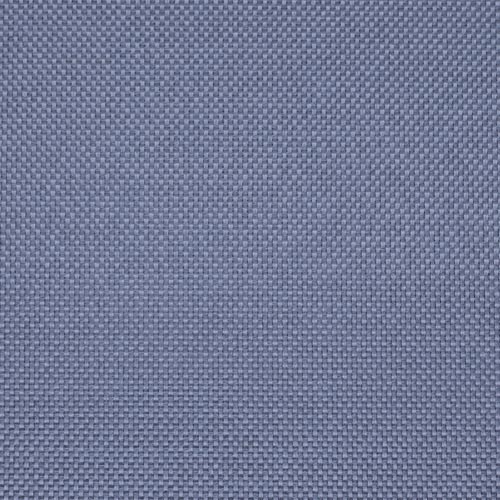

Castel

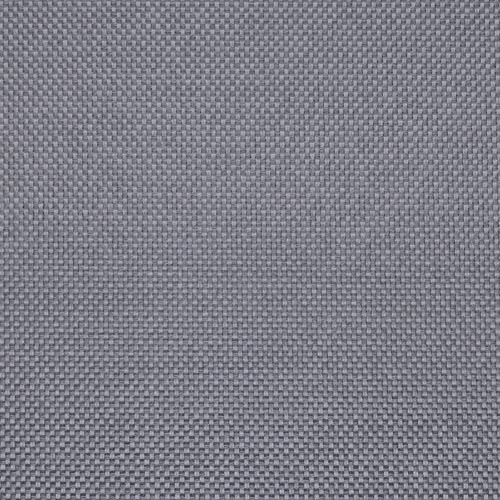

Greige

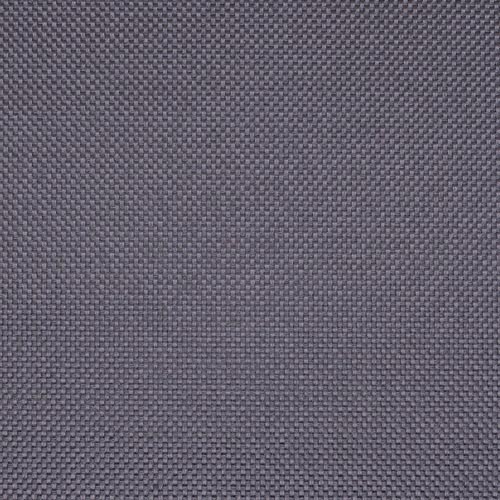

Perle Noir

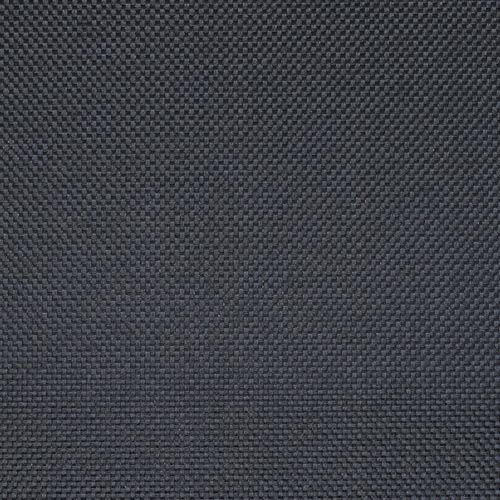

Schwarz

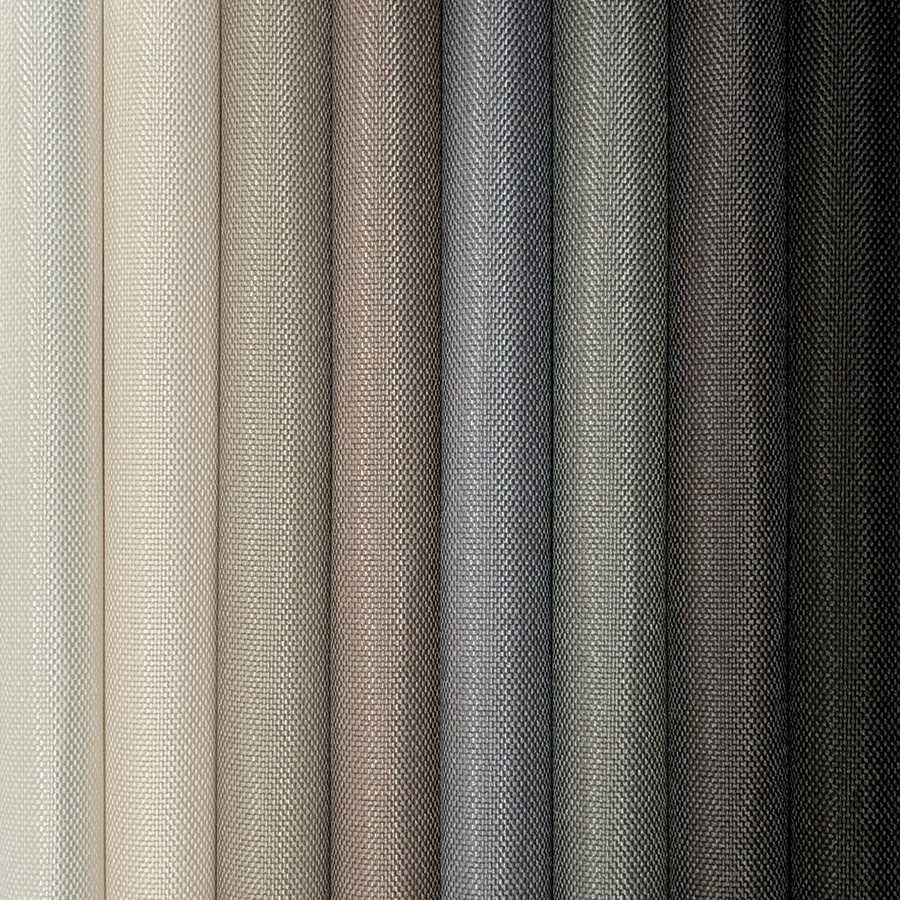

Euroscreen® ECO Transparent

Euroscreen Eco Transparent is a high quality 100% Trevira CS ECO fabric uniting two properties of flame retardancy and sustainability to ensure a highly positive impact on the environment. It has been designed to meet stringent standards in light glare and insulation from harmful UV rays, and has very low VOC emissions, exceeding the Green Building Council Australia standards. Euroscreen® Eco’s superior heat and reflection properties assist in maintaining an energy efficient environment.

Outstanding benefits

100% Trevira CS ECO of which 67% is Recycled PET Material
100% Free of PVC, Formaldehyde and Halogen to help reduce toxins in your environment
Fabric is stiffened without chemicals
High colour brilliance and fastness to light
Permanently flame retardant without the use of additional finishes
Ultrasonic sealed edges
Suitable for humid rooms

Enquire Now

Product Enquiry

Quality:

100% Trevira CS ECO of which 67% is Recycled PET Material
(100% Free of PVC, Formaldehyde and Halogen to help reduce toxins in your environment)

Country of Origin:

Germany

Width:

Maximum Roller Width 3000mm

Maximum Roman Width 2930mm

Weave & Opacity:

Panama weave to achieve transparent opacity.

Weight:

170 gr/m²

Thickness

0.36mm

Humid Room Suitability:

This fabric is suitable for use in humid rooms, such as bathrooms.

Custom Colour:

Available for orders of 500lm.

Printing:

Suitable for screen printing.
Ask for more details.

Fire Classifications:

AWTA AS1530.2 1993

AWTA AS1530.3 1993

German Standard: DIN 4102 - B1

French Standard: M1

Global Recycle Standard Certified:

Yes

Oeko-Tex Certified:

Yes

Lightfastness:

Tested DIN EN ISO 105 B2: 6 - 7
Fabric with a 5+ result offers excellent resistance to the fading effect of light.

VOC test:

ASTM D5116

Fabric Warranty:

7 years (internal use only)

Do not allow dust to accumulate. Gently vacuum with appropriate attachment. Do not dry clean. Test in an inconspicuous area with mild detergent solution before spot cleaning. When spot cleaning do not allow that area to become fully wet, use damp cloth only.

									Independently tested to ASHRAE 74 - 1988
Independently tested to DIN EN410: 2011									Shading Coefficient			G-Value
	Ts	Rs	As	Tv/Vlt	Rl	Al	Tuv	O-F	3mm Cl.	6mm Cl.	6mm H.A.	3mm Cl.	6mm Cl.	6mm H.A.
BLANCO	37	58	5	37	60	2	23	6	0.48	0.47	0.39	0.42	0.41	0.34
HUSH	35	58	7	34	58	7	23	5	0.47	0.46	0.39	0.41	0.4	0.34
STONELEIGH	26	46	28	15	31	53	9	3	0.5	0.48	0.4	0.44	0.42	0.35
ANTIQUA	24	41	35	9	20	69	7	4	0.52	0.51	0.41	0.45	0.44	0.36
CASTEL	25	38	37	9	16	74	8	4	0.52	0.51	0.41	0.45	0.44	0.36
GREIGE	22	35	43	6	11	81	6	4	0.53	0.52	0.41	0.46	0.45	0.36
PERLE NOIR	21	34	45	5	7	86	5	4	0.55	0.53	0.42	0.48	0.46	0.37
SCHWARZ	20	32	48	3	3	93	4	3	0.57	0.55	0.43	0.5	0.48	0.37

Downloads

Tech Data Sheet

Vertilux_Euroscreen ECO Transparent_Fabric Tech Data

AWTA Reports

Vertilux_EuroScreen ECO Transparent_PET_AWTA 1530.2

Vertilux_EuroScreen ECO Transparent_PET_AWTA 1530.3

Certifications

Environmental_Vertilux_Euroscreen ECO Transparent_GreenRate_Level A

Environmental_EN15804_EPD_Vertillux_Euroscreen ECO Transparent

Environmental_PHD_Vertilux Euroscreen ECO Transparent_Platinum Health Rate
